一：背景
1. 講故事
這是訓練營裏的一位朋友找到我的，説他們的系統會有偶發的內存暴漲情況，自己也沒分析出來，讓我幫忙看下怎麼回事，拿了一個20G+的dump文件，這文件是夠大的，我個人建議一般是不超過10G，不然的話windbg分析起來很吃力。
二：內存暴漲分析
1. 為什麼會內存暴漲
還是老辦法，使用 !address -summary 觀察提交內存，輸出如下：
0:000> !address -summary
--- Usage Summary ---------------- RgnCount ----------- Total Size -------- %ofBusy %ofTotal
Free 1870 5ff8`c8447000 ( 95.972 TB) 74.98%
<unknown> 1064 2005`7faca000 ( 32.021 TB) 99.98% 25.02%
Heap 3594 1`56a34000 ( 5.354 GB) 0.02% 0.00%
Image 4747 0`35dfb000 ( 861.980 MB) 0.00% 0.00%
Stack 522 0`2b440000 ( 692.250 MB) 0.00% 0.00%
Other 314 0`00313000 ( 3.074 MB) 0.00% 0.00%
TEB 174 0`0015c000 ( 1.359 MB) 0.00% 0.00%
PEB 1 0`00001000 ( 4.000 kB) 0.00% 0.00%
--- State Summary ---------------- RgnCount ----------- Total Size -------- %ofBusy %ofTotal
MEM_FREE 1870 5ff8`c8447000 ( 95.972 TB) 74.98%
MEM_RESERVE 2326 2001`b95a7000 ( 32.007 TB) 99.93% 25.01%
MEM_COMMIT 8090 5`7e602000 ( 21.975 GB) 0.07% 0.02%
0:000> !eeheap -gc
Number of GC Heaps: 1
generation 0 starts at 0x0000013e0f5919d8
generation 1 starts at 0x0000013e0f49a8b0
generation 2 starts at 0x0000013e09f21000
ephemeral segment allocation context: none
segment begin allocated size
0000013e09f20000 0000013e09f21000 0000013e0fb15b20 0x5bf4b20(96422688)
Large object heap starts at 0x0000013e19f21000
segment begin allocated size
0000013e19f20000 0000013e19f21000 0000013e211b6f50 0x7295f50(120151888)
...
00000143d6850000 00000143d6851000 00000143db009118 0x47b8118(75202840)
Total Size: Size: 0x33bd0f148 (13888450888) bytes.
------------------------------
GC Heap Size: Size: 0x33bd0f148 (13888450888) bytes.
從卦中可以看到提交內存是21.9G, Heap堆是5.3G，託管堆是 13.8G，既然佔了一半多的提交內存，看樣子要從託管堆入手了。
2. 託管堆怎麼了

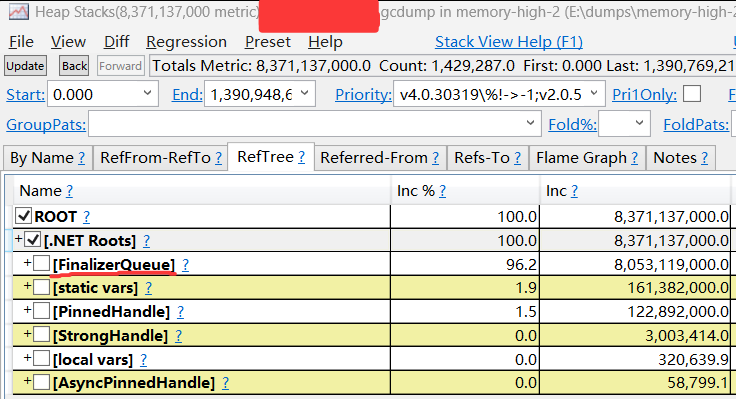

看託管內存的佔用，可以藉助強大的 perfview 做一個快速識別，看看哪些gcroot根佔用比較大，截圖如下：
從卦中可以清晰的看到 FinalizerQueue 吃了幾乎所有的託管內存，如果大家對 FinalizerQueue 有所瞭解，應該知道下一步的追蹤方向了。
接下來使用 !fq 命令觀察終結器隊列情況，參考輸出如下：
0:000> !fq
SyncBlocks to be cleaned up: 0
Free-Threaded Interfaces to be released: 0
MTA Interfaces to be released: 0
STA Interfaces to be released: 0
----------------------------------
generation 0 has 2722 finalizable objects (0000013f4c737e08->0000013f4c73d318)
generation 1 has 73 finalizable objects (0000013f4c737bc0->0000013f4c737e08)
generation 2 has 20328 finalizable objects (0000013f4c710080->0000013f4c737bc0)
Ready for finalization 34482 objects (0000013f4c73d318->0000013f4c7808a8)
Statistics for all finalizable objects (including all objects ready for finalization):
上面的 Ready for finalization 即 終結器隊列的 Freachable 區域，也就是終結器線程提取數據的地方，可以看到此時這個小節裏積壓了 3.4w 的數據，也就表明此時的終結器線程應該出了問題。
3. 終結器線程怎麼了
要想找到終結器線程，可以先用 !t 切過去再觀察調用棧即可。
0:000> !t
ThreadCount: 104
UnstartedThread: 0
BackgroundThread: 40
PendingThread: 0
DeadThread: 63
Hosted Runtime: no
Lock
ID OSID ThreadOBJ State GC Mode GC Alloc Context Domain Count Apt Exception
0 1 3854 0000013e082beb60 26020 Preemptive 0000013E0F6E63A0:0000013E0F6E79D8 0000013e08293ef0 0 STA
5 2 708 0000013e082e7bd0 2b220 Preemptive 0000000000000000:0000000000000000 0000013e08293ef0 0 MTA (Finalizer)
0:000> ~~[708]s
win32u!NtUserMessageCall+0x14:
00007ff8`6b151124 c3 ret
0:005> k
# Child-SP RetAddr Call Site
00 00000029`dbdfea38 00007ff8`6cce1082 win32u!NtUserMessageCall+0x14
01 00000029`dbdfea40 00007fff`9879b2d0 user32!SendMessageTimeoutW+0x102
02 00000029`dbdfead0 00007fff`985c4dc7 halcon!IOWIN32DumpToTexture+0xc90
03 00000029`dbdfef60 00007fff`974bff0e halcon!IPGenImaMask+0xae7
04 00000029`dbdfefd0 00007fff`9739d0ca halcon!HHandleClear+0x10e
05 00000029`dbdff050 00007ff7`f5d5a1a2 halcon!HLIClearHandle+0x2a
06 00000029`dbdff090 00007ff7`f5d5b571 halcondotnet!HalconDotNet.HHandleBase.ClearHandleInternal+0x92
07 00000029`dbdff140 00007ff7`f5ddf865 halcondotnet!HalconDotNet.HHandleBase.Dispose+0x21
08 00000029`dbdff180 00007ff8`542d67b6 halcondotnet!HalconDotNet.HHandleBase.Finalize+0x15
09 00000029`dbdff1c0 00007ff8`544934a1 clr!FastCallFinalizeWorker+0x6
0a 00000029`dbdff1f0 00007ff8`54493429 clr!FastCallFinalize+0x55
0b 00000029`dbdff240 00007ff8`54493358 clr!MethodTable::CallFinalizer+0xb5
0c 00000029`dbdff290 00007ff8`5449318b clr!CallFinalizer+0x5e
0d 00000029`dbdff2d0 00007ff8`544930a4 clr!FinalizerThread::DoOneFinalization+0x95
0e 00000029`dbdff3b0 00007ff8`544923fa clr!FinalizerThread::FinalizeAllObjects+0xbf
0f 00000029`dbdff3f0 00007ff8`542d7be8 clr!FinalizerThread::FinalizerThreadWorker+0xba
10 00000029`dbdff440 00007ff8`542d7b53 clr!ManagedThreadBase_DispatchInner+0x40
11 00000029`dbdff480 00007ff8`542d7a92 clr!ManagedThreadBase_DispatchMiddle+0x6c
12 00000029`dbdff580 00007ff8`5441c316 clr!ManagedThreadBase_DispatchOuter+0x4c
13 00000029`dbdff5f0 00007ff8`542dbcc5 clr!FinalizerThread::FinalizerThreadStart+0x116
14 00000029`dbdff690 00007ff8`6b3a7374 clr!Thread::intermediateThreadProc+0x8b
15 00000029`dbdff750 00007ff8`6d35cc91 kernel32!BaseThreadInitThunk+0x14
16 00000029`dbdff780 00000000`00000000 ntdll!RtlUserThreadStart+0x21
0:005> !clrstack
OS Thread Id: 0x708 (5)
Child SP IP Call Site
00000029dbdff0b8 00007ff86b151124 [InlinedCallFrame: 00000029dbdff0b8] HalconDotNet.HalconAPI.ClearHandle(IntPtr)
00000029dbdff0b8 00007ff7f5d5a1a2 [InlinedCallFrame: 00000029dbdff0b8] HalconDotNet.HalconAPI.ClearHandle(IntPtr)
00000029dbdff090 00007ff7f5d5a1a2 HalconDotNet.HHandleBase.ClearHandleInternal()
00000029dbdff140 00007ff7f5d5b571 HalconDotNet.HHandleBase.Dispose(Boolean)
00000029dbdff180 00007ff7f5ddf865 HalconDotNet.HHandleBase.Finalize()
00000029dbdff5d0 00007ff8542d67b6 [DebuggerU2MCatchHandlerFrame: 00000029dbdff5d0]
從卦象看，真尼瑪坑爹呀，halcon的釋放居然還要和某一個窗口通訊，即底層的 NtUserMessageCall 方法，窗口句柄記錄在 rcx 寄存器裏，輸出如下：
0:005> r
rax=0000000000001007 rbx=00000029dbdfef10 rcx=00000000000f3736
rdx=000000000000c258 rsi=000000000000c258 rdi=0000000000000000
rip=00007ff86b151124 rsp=00000029dbdfea38 rbp=00007fff985c4ed0
r8=0000000000000015 r9=0000000000000000 r10=00007fff96d40000
r11=0000000000000000 r12=00000029dbdfefb0 r13=00007fff985c4ed0
r14=0000000000000e20 r15=00000000000f3736
iopl=0 nv up ei pl zr na po nc
cs=0033 ss=002b ds=002b es=002b fs=0053 gs=002b efl=00000246
win32u!NtUserMessageCall+0x14:
00007ff8`6b151124 c3 ret

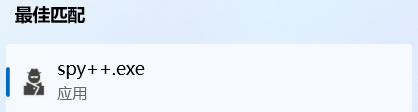

接下來的問題如何找到 rcx 對應的窗口是哪一個，這個需要藉助強大的 spy++ 探測，這個在我之前的文章都有所介紹，截圖如下：
到這裏所有的來龍去脈都搞清楚了，即窗體無響應導致的終結器線程卡死，進而引發災難性的後果，最後讓朋友重點關注下 halcon 以及用 spy++ 的探測。
三：總結
作為一個調試師，要善用多個分析工具，往往在解決問題時事半功倍。
