解決步驟：整體替換【為buildroot的】rkbin目錄，clean掉uboot目錄並重新編譯uboot，然後再打包就OK了！
rootroot@rootroot-X99-Turbo:~$
rootroot@rootroot-X99-Turbo:~$ cd Linux_SDK/
rootroot@rootroot-X99-Turbo:~/Linux_SDK$ cd Firefly_SDK/
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ tar --use-compress-program=pigz -cvpf rkbin1buildroot.tgz rkbin/
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ cd ~/proj/
rootroot@rootroot-X99-Turbo:~/proj$ ll
rootroot@rootroot-X99-Turbo:~/proj$ cd RK3576_Android14.0/
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ mv rkbin/ rkbin2
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ tar --use-compress-program=pigz -xvpf rkbin1buildroot.tgz
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ cd u-boot/
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ make distclean
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ make rk3576_defconfig
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll .config
-rw-rw-r-- 1 rootroot rootroot 42065 10月 28 09:03 .config
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ./make.sh --spl-new
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ cd ..
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ./FFTools/mkupdate/mkupdate.sh -l rk3576_firefly_aio_3576q38-userdebug
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$

20251028解決編譯AIO-3576Q38開發板的Android14刷機之後進MASKROM模式的問題
2025/10/28 11:16

緣起：編譯firefly的AIO-3576Q38開發板的Android14。
開動！

https://www.t-firefly.com/doc/download/320.html AIO-3576C

源代碼
https://pan.baidu.com/s/1mGkGxlxodHedXJZqLKRRRg?pwd=1234 Android14.0 bundle
提取碼：1234

https://wiki.t-firefly.com/zh_CN/AIO-3576Q38/android_compile_android14.0_firmware.html AIO-3576Q38

AIO-3576Q38開發板的Android14編譯完成了，但是 啓動不了。卡在maskrom模式了。
能否 讓 cym 支持一下？[疑問]

看打印，他應該知道怎麼解決？

現象：AIO-3576Q38開發板的Buildroot/Linux系統刷機之後可以啓動。
但是刷機Android14啓動不了，直接進MASKROM模式。

以前做樂曉電子的開發板KickPi的K7的時候也出現過這個問題。
直接用Buildroot的rkbin目錄提前掉Android14的就OK了。

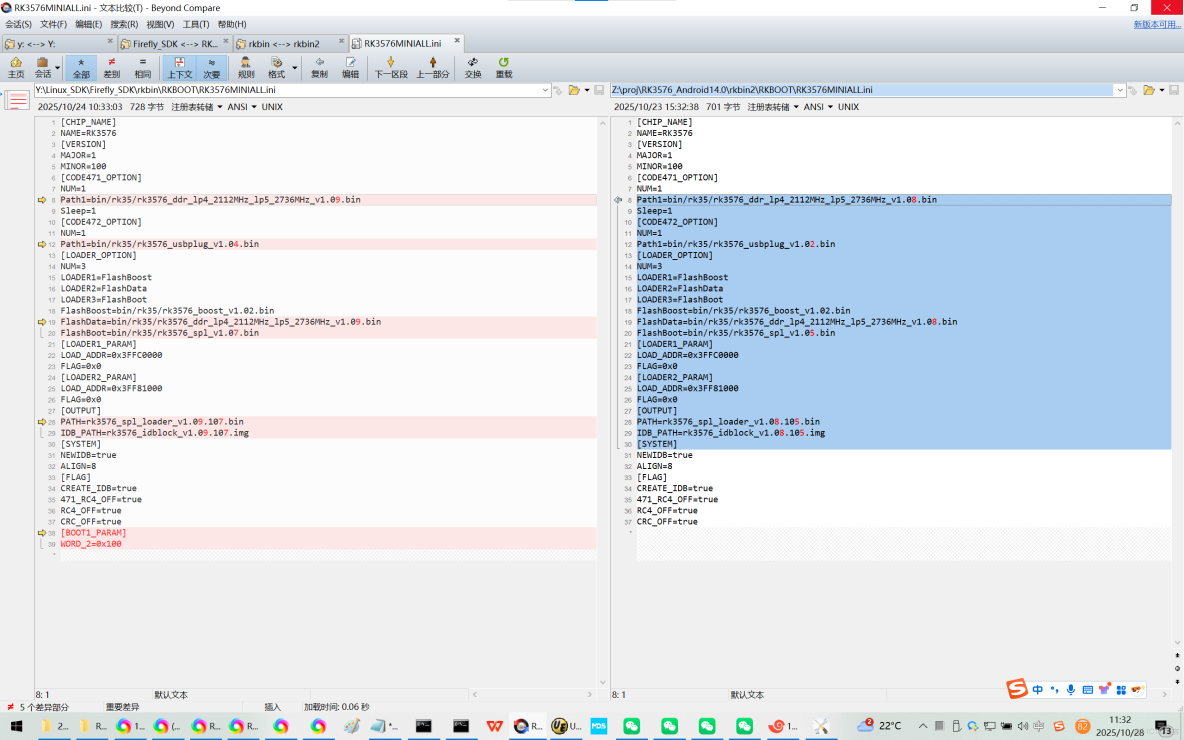

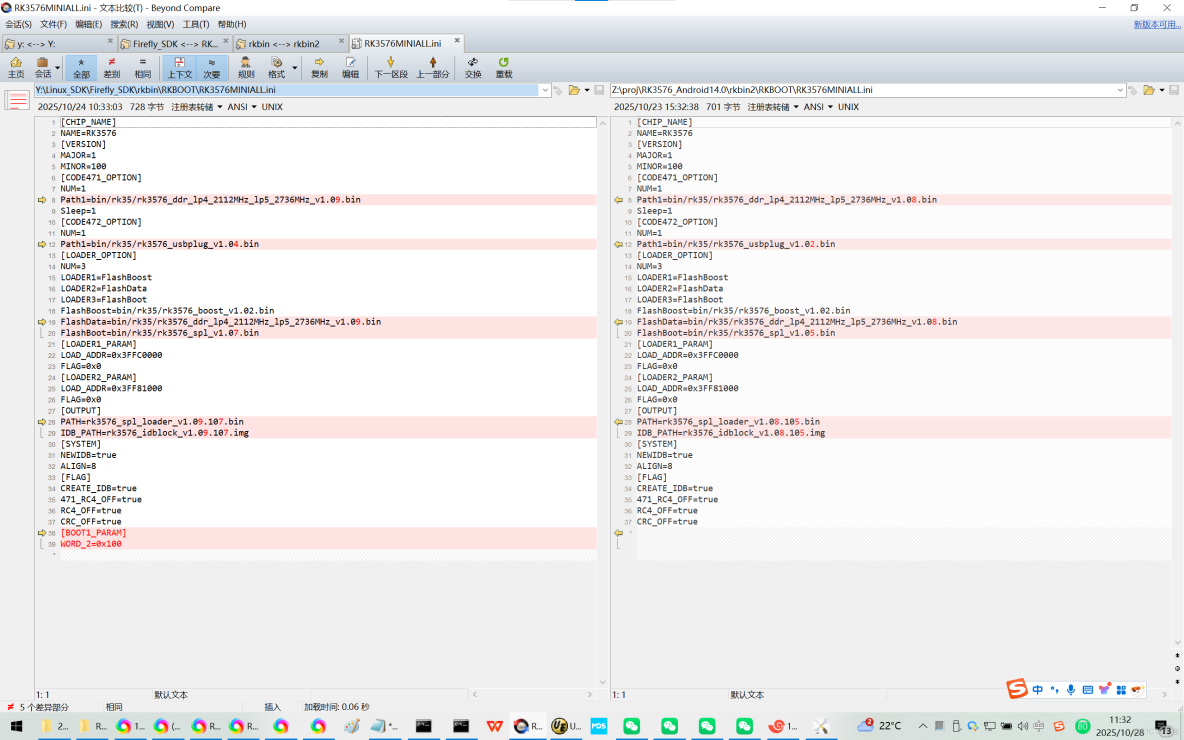

經過比對，Buildroot的rkbin目錄中的引導文件的版本比Android14至少高一個版本。
樂曉回覆：以前用的進口的DDR4/eMMC，現在進口的買不到了，換國產的DDR4/eMMC了！

U-Boot 2017.09(u-boot commit id: d9c1d6ebf7)(sdk version: rk3576_linux_next)-gd9c1d6ebf7-240923 #lzj (Sep 11 2025 - 09:23:00 +0800)

Model: Rockchip RK3576 Evaluation board
MPIDR: 0x0
PreSerial: 0, raw, 0x2ad40000
DRAM:  8 GiB
Sysmem: init
Relocation Offset: bd9f4000
Relocation fdt: fb7fa770 - fb7fecd8
CR: M/C/I
Using default environment

optee api revision: 2.0
mmc@2a310000: 1, mmc@2a330000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v2
=================begin===================
282326 bytes read in 6 ms (44.9 MiB/s)
DTB(Distro): rk-kernel.dtb
boot mode: loader
dw_dp_bind zyb enter
I2c1 speed: 100000Hz
PMIC:  RK8060 (on=0x40, off=0x00)
vdd_cpu_big_s0 init 850000 uV
vdd_npu_s0 750000 uV
vdd_cpu_lit_s0 init 850000 uV
vdd_gpu_s0 init 750000 uV
vdd_logic_s0 init 750000 uV
vdd_ddr_s0 850000 uV
I2c2 speed: 100000Hz
Error reading output register
Error reading output register
Device 'gpio@2ae10000': seq 1 is in use by 'gpio@21'
Could not find baseparameter partition
Model: Firefly AIO-3576Q38 Linux HDMI
No resource file: logo.bmp
=================begin===================
512 bytes read in 3 ms (166 KiB/s)
logo(Distro): logo.bmp
=================begin===================
751554 bytes read in 3 ms (238.9 MiB/s)
logo(Distro): logo.bmp
Rockchip UBOOT DRM driver version: v1.0.1
Assign plane mask automatically
VOP have 2 active VP
vp0 have layer nr:1[2 ], primary plane: 2
vp1 have layer nr:0[], primary plane: 0
vp2 have layer nr:1[8 ], primary plane: 8
Monitor has basic audio support
Could not find baseparameter partition
color_format:1
hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x2025
hdmi@27da0000:  detailed mode clock 148500 kHz, flags[5]
    H: 1920 2008 2052 2200
    V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
disp_info is empty
VP0 set crtc_clock to 148500KHz
VOP VP0 enable Esmart0[500x501->500x501@710x289] fmt[1] addr[0xfdfb8000]
CEA mode used vic=16
mtmdsclock:148500000
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!

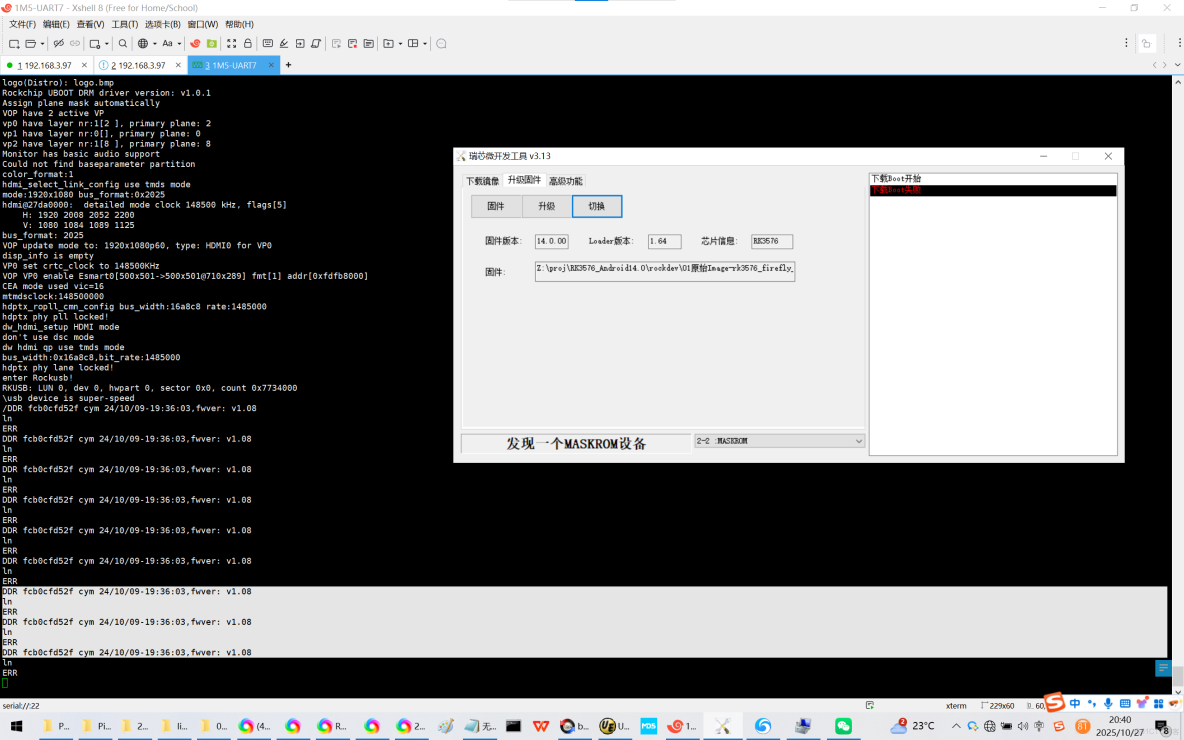

enter Rockusb!
RKUSB: LUN 0, dev 0, hwpart 0, sector 0x0, count 0x7734000
\usb device is super-speed
/DDR fcb0cfd52f cym 24/10/09-19:36:03,fwver: v1.08
ln
ERR
DDR fcb0cfd52f cym 24/10/09-19:36:03,fwver: v1.08

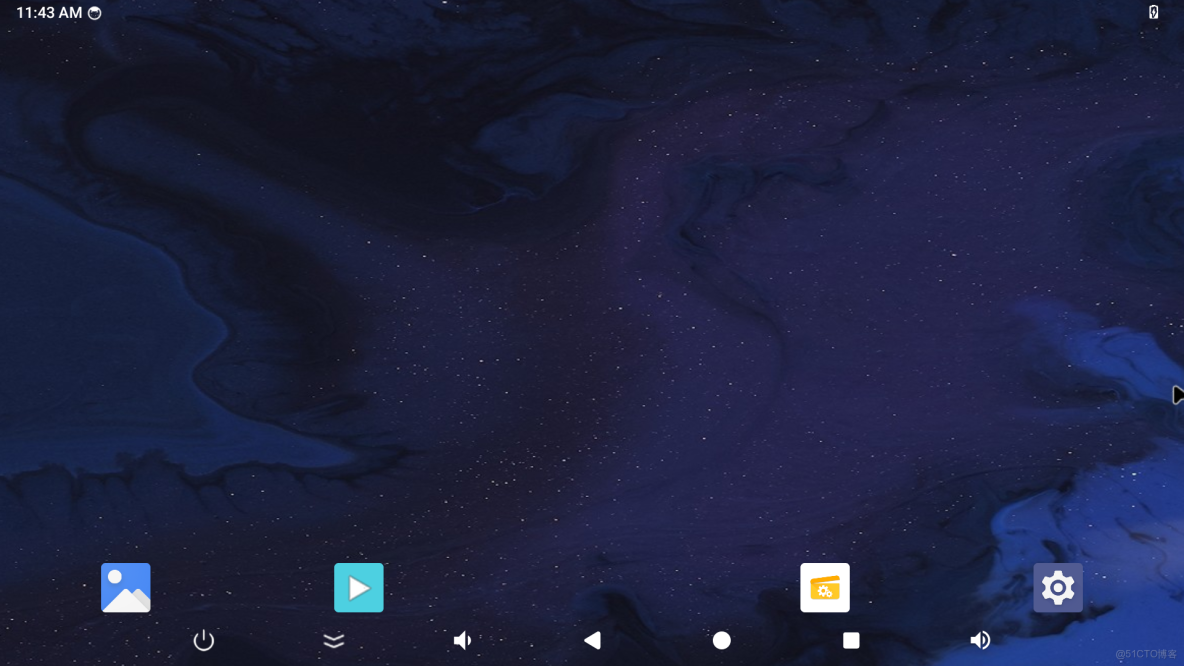

解決步驟：整體替換【為buildroot的】rkbin目錄，clean掉uboot目錄並重新編譯uboot，然後再打包就OK了！

精簡的LOG：
[BEGIN] 2025/10/28 9:00:36
rootroot@rootroot-X99-Turbo:~$ ll
rootroot@rootroot-X99-Turbo:~$ cd Linux_SDK/
rootroot@rootroot-X99-Turbo:~/Linux_SDK$ ll
rootroot@rootroot-X99-Turbo:~/Linux_SDK$ cd Firefly_SDK/
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ll
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ tar --use-compress-program=pigz -cvpf rkbin1buildroot.tgz rk
rkbin/      rkflash.sh
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ tar --use-compress-program=pigz -cvpf rkbin1buildroot.tgz rkbin/
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ ll
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$
rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ cd ~/proj/
rootroot@rootroot-X99-Turbo:~/proj$ ll
rootroot@rootroot-X99-Turbo:~/proj$ cd RK3576_Android14.0/
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ mv rkbin/ rkbin2
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ tar --use-compress-program=pigz -xvpf rkbin1buildroot.tgz
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ cd u-boot/
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll

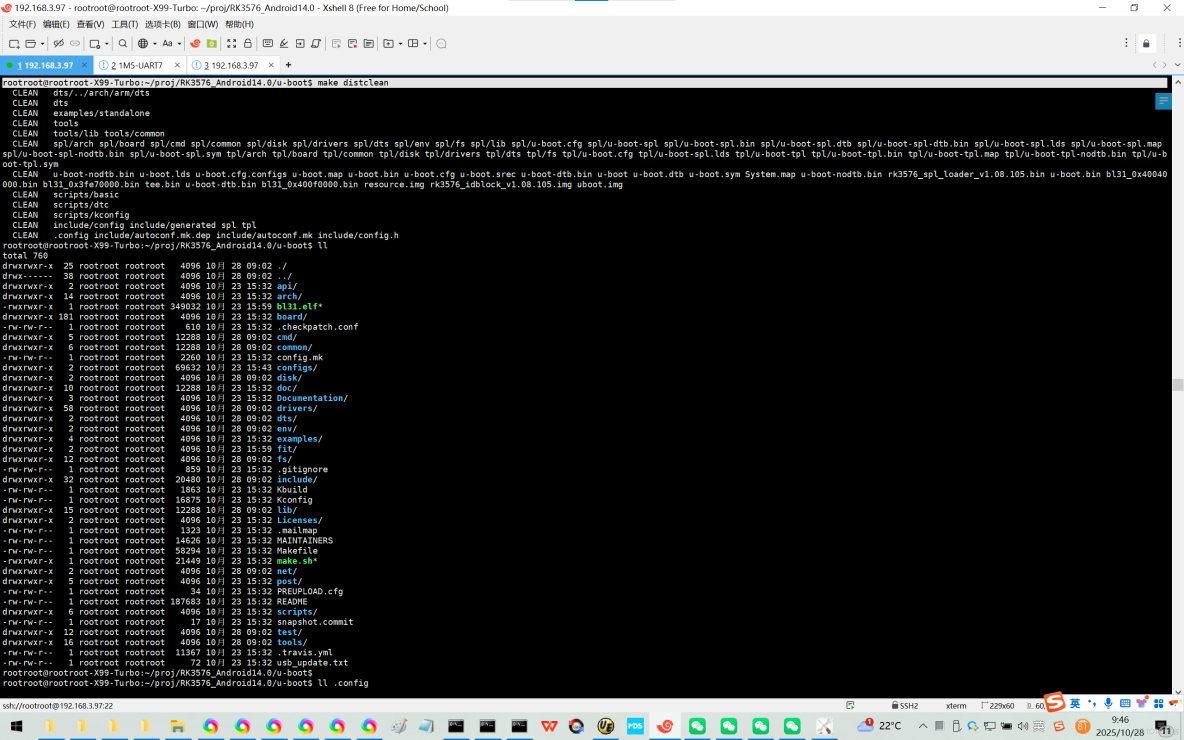

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ make distclean
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll .config
ls: cannot access '.config': No such file or directory

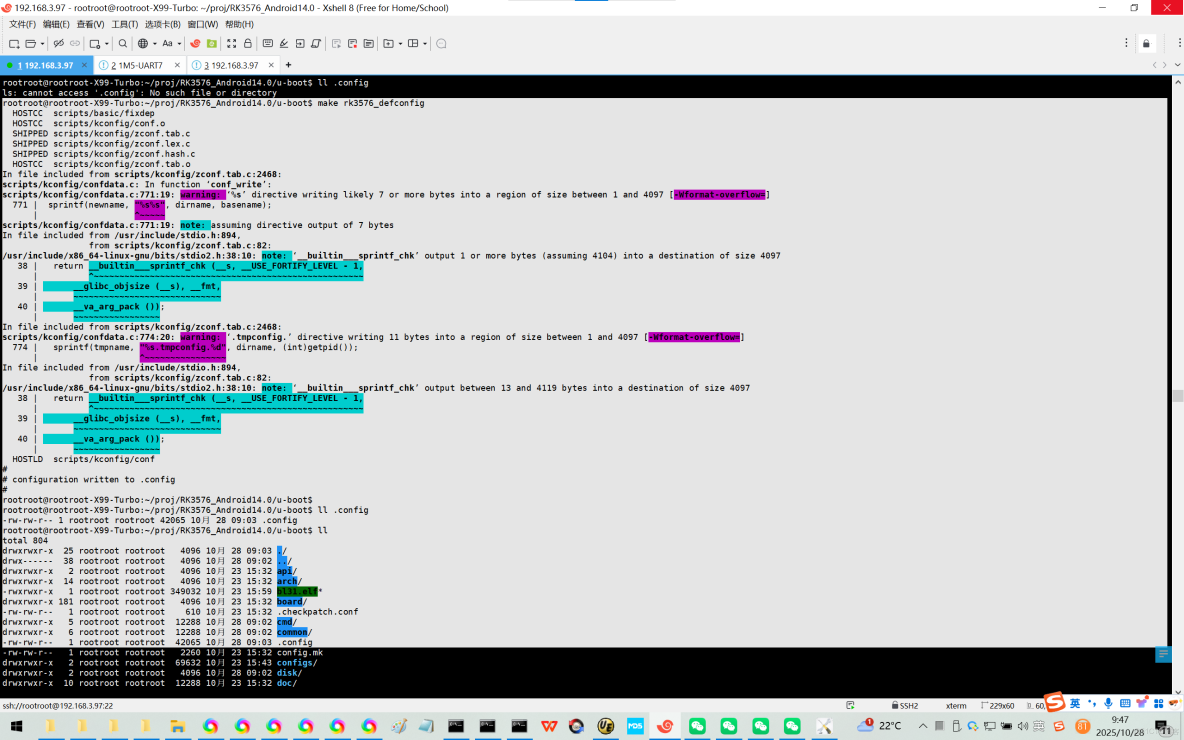

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ make rk3576_defconfig
  HOSTCC  scripts/basic/fixdep
  HOSTCC  scripts/kconfig/conf.o
  SHIPPED scripts/kconfig/zconf.tab.c
  SHIPPED scripts/kconfig/zconf.lex.c
  SHIPPED scripts/kconfig/zconf.hash.c
  HOSTCC  scripts/kconfig/zconf.tab.o
In file included from scripts/kconfig/zconf.tab.c:2468:
scripts/kconfig/confdata.c: In function ‘conf_write’:
scripts/kconfig/confdata.c:771:19: warning: ‘%s’ directive writing likely 7 or more bytes into a region of size between 1 and 4097 [-Wformat-overflow=]
  771 |  sprintf(newname, "%s%s", dirname, basename);
      |                   ^~~~~~
scripts/kconfig/confdata.c:771:19: note: assuming directive output of 7 bytes
In file included from /usr/include/stdio.h:894,
                 from scripts/kconfig/zconf.tab.c:82:
/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: ‘__builtin___sprintf_chk’ output 1 or more bytes (assuming 4104) into a destination of size 4097
   38 |   return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,
      |          ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
   39 |       __glibc_objsize (__s), __fmt,
      |       ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
   40 |       __va_arg_pack ());
      |       ~~~~~~~~~~~~~~~~~
In file included from scripts/kconfig/zconf.tab.c:2468:
scripts/kconfig/confdata.c:774:20: warning: ‘.tmpconfig.’ directive writing 11 bytes into a region of size between 1 and 4097 [-Wformat-overflow=]
  774 |   sprintf(tmpname, "%s.tmpconfig.%d", dirname, (int)getpid());
      |                    ^~~~~~~~~~~~~~~~~
In file included from /usr/include/stdio.h:894,
                 from scripts/kconfig/zconf.tab.c:82:
/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: ‘__builtin___sprintf_chk’ output between 13 and 4119 bytes into a destination of size 4097
   38 |   return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,
      |          ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
   39 |       __glibc_objsize (__s), __fmt,
      |       ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
   40 |       __va_arg_pack ());
      |       ~~~~~~~~~~~~~~~~~
  HOSTLD  scripts/kconfig/conf
#
# configuration written to .config
#
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll .config
-rw-rw-r-- 1 rootroot rootroot 42065 10月 28 09:03 .config
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll

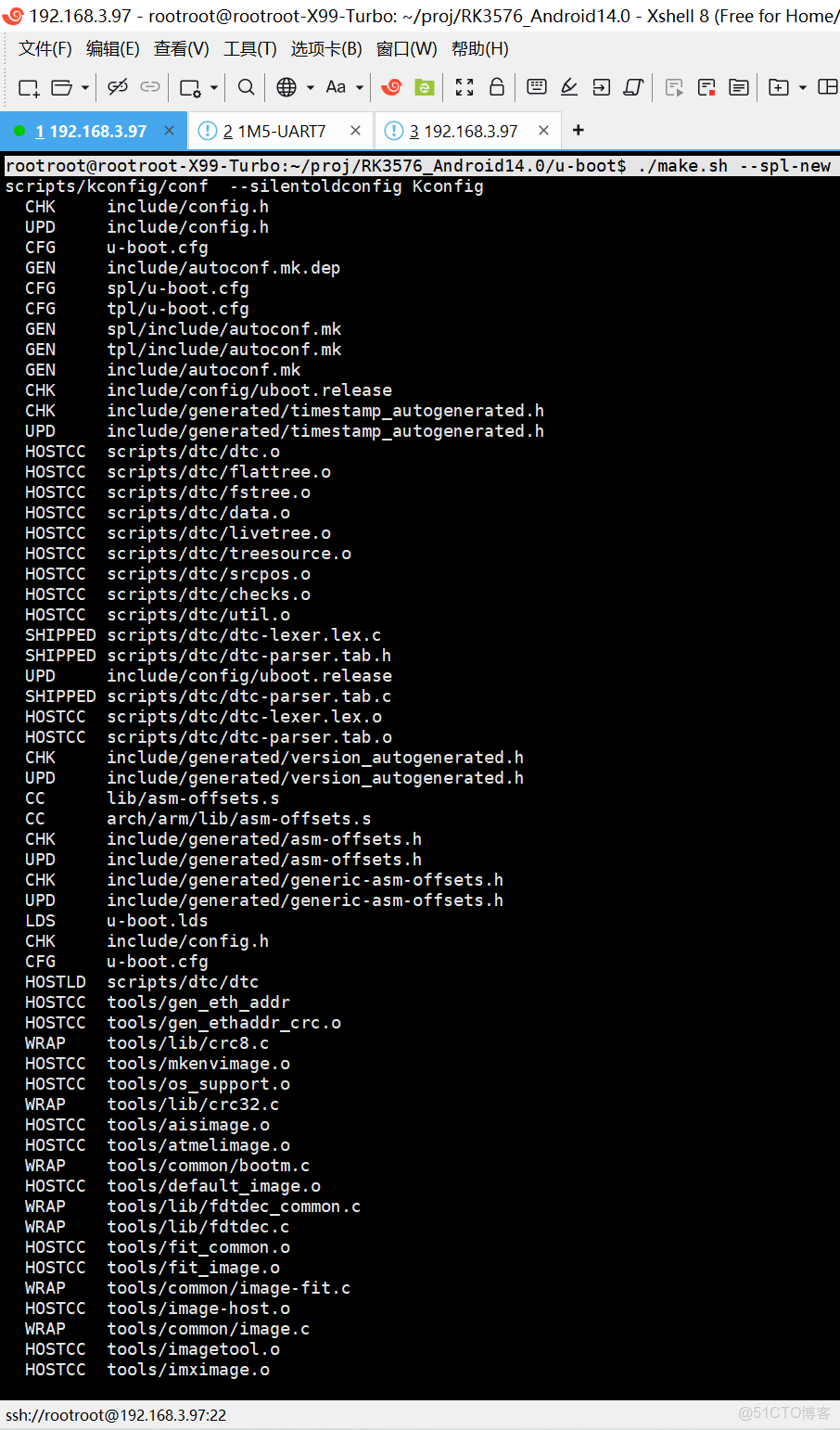

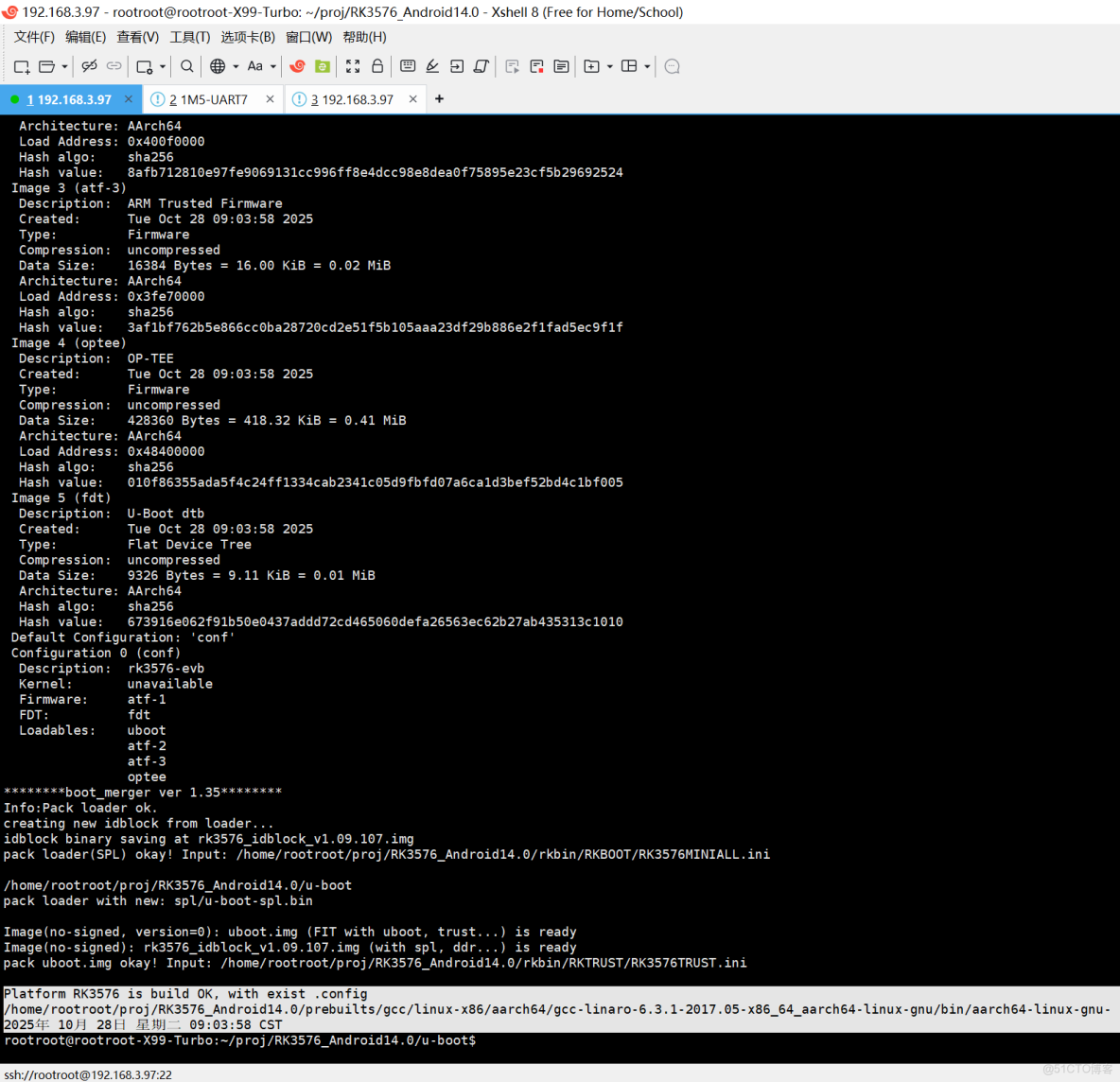

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ./make.sh --spl-new
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ cd ..
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll

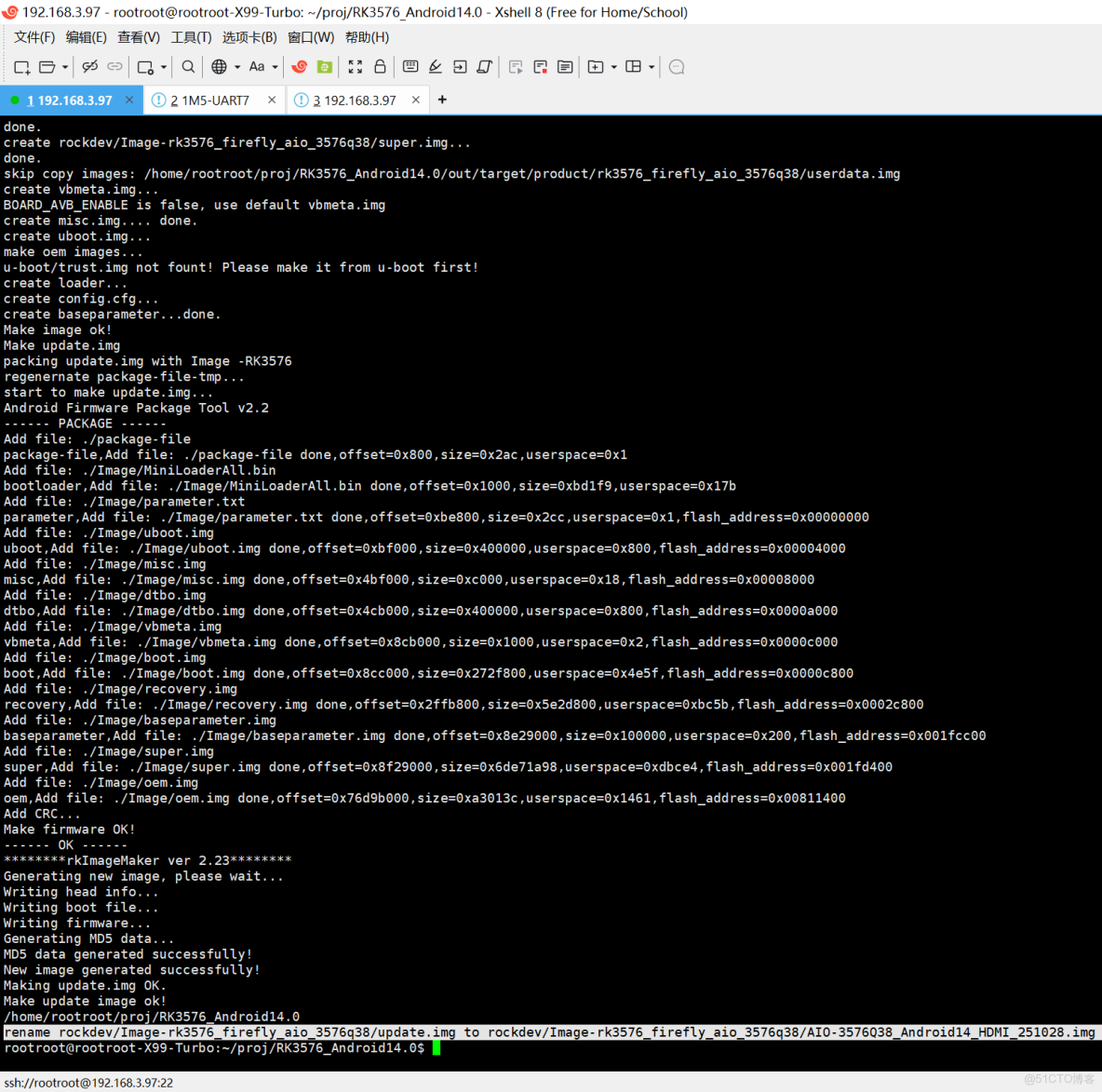

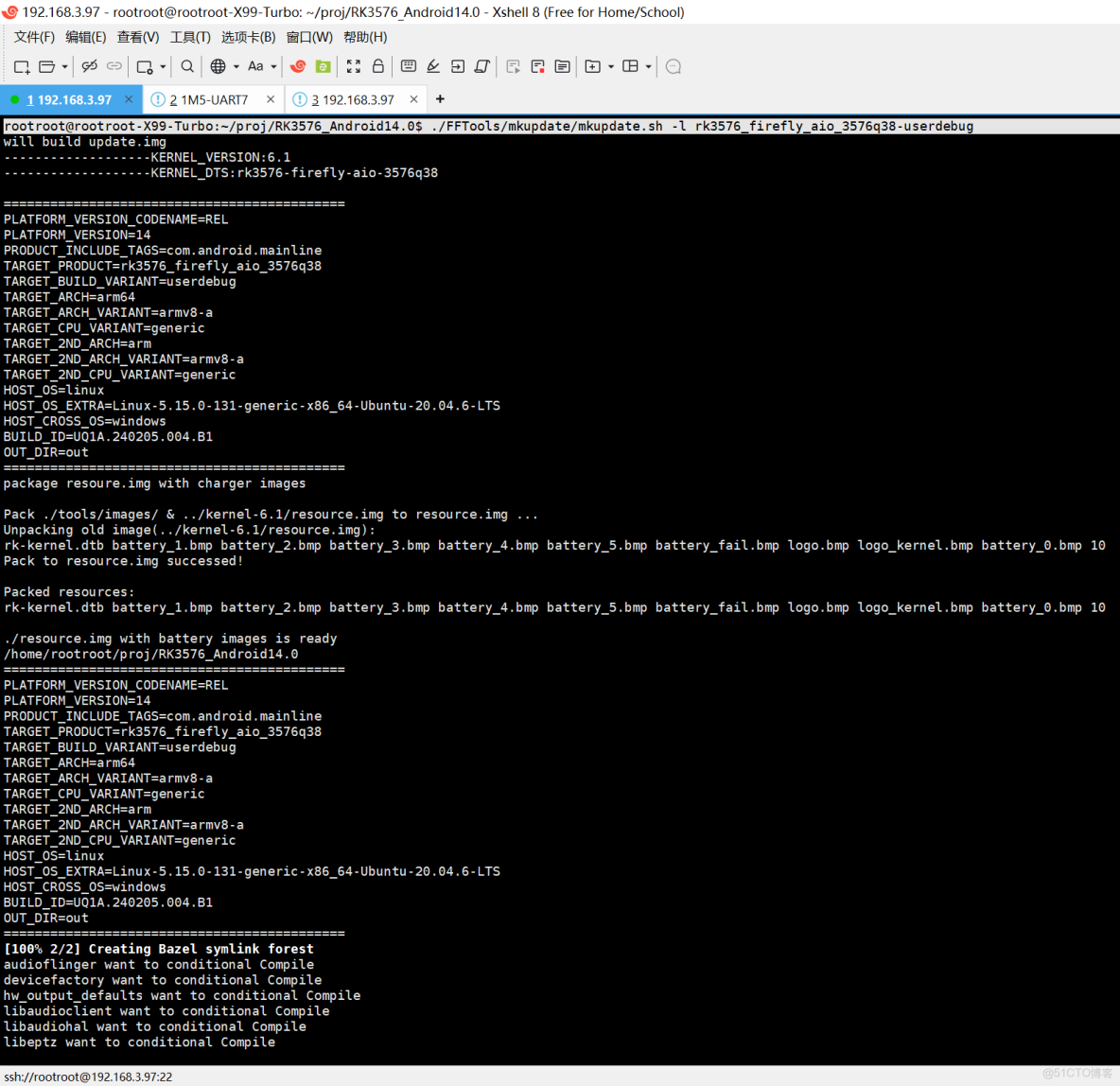

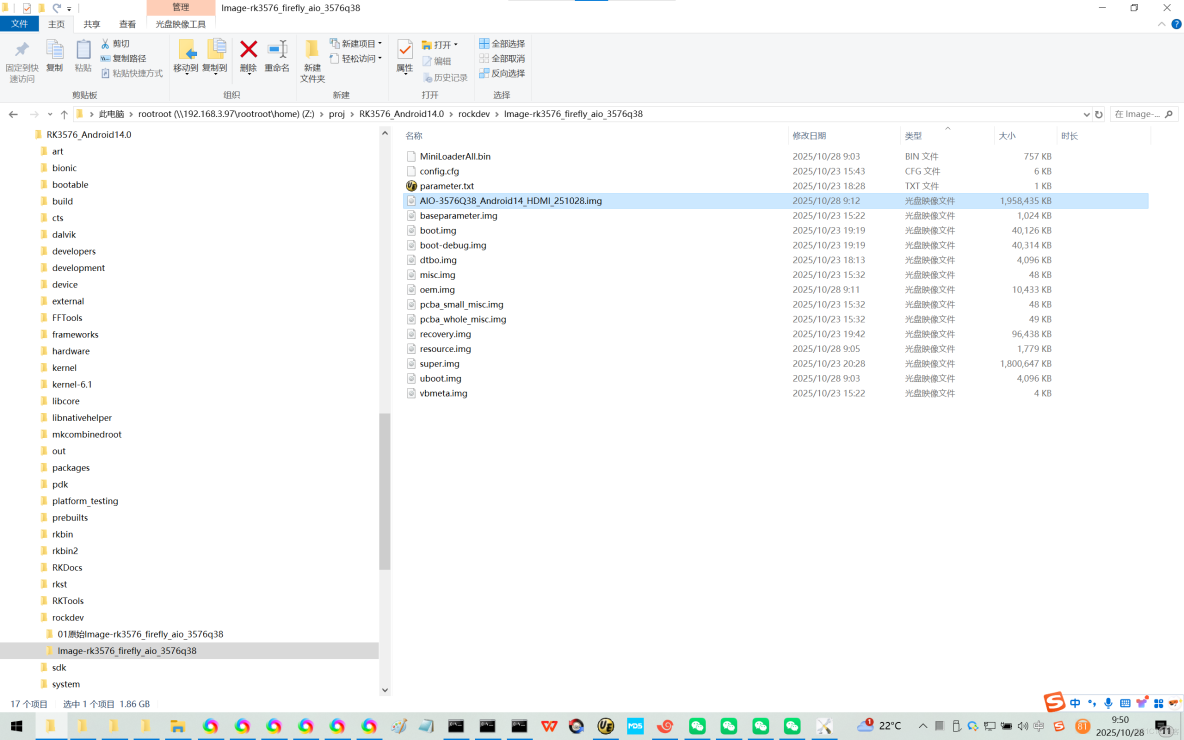

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ./FFTools/mkupdate/mkupdate.sh -l rk3576_firefly_aio_3576q38-userdebug
rename rockdev/Image-rk3576_firefly_aio_3576q38/update.img to rockdev/Image-rk3576_firefly_aio_3576q38/AIO-3576Q38_Android14_HDMI_251028.img
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$

[END] 2025/10/28 10:42:02
