React Native封裝tencentx5 Sdk的Webview 詳情 - java,typescript,android,react-native,webview perkz 博客

參考資料：
react-native-webview-tencentx5
手把手教你一步步集成騰訊 X5 內核（Tencent TBS X5）
接入文檔
開發文檔

之前基於react-native-webview封裝的Canvas在比較老的android手機上沒法導出圖片canvas.toDataURL失效了，就想用react-native-webview-tencentx5去代替react-native-webview，但是react-native-webview-tencentx5不兼容react-native@0.70.所以只能借鑑react-native-webview-tencentx5重新去封裝一個webview。

去TBS官網下載sdk
騰訊瀏覽服務 - SDK 下載

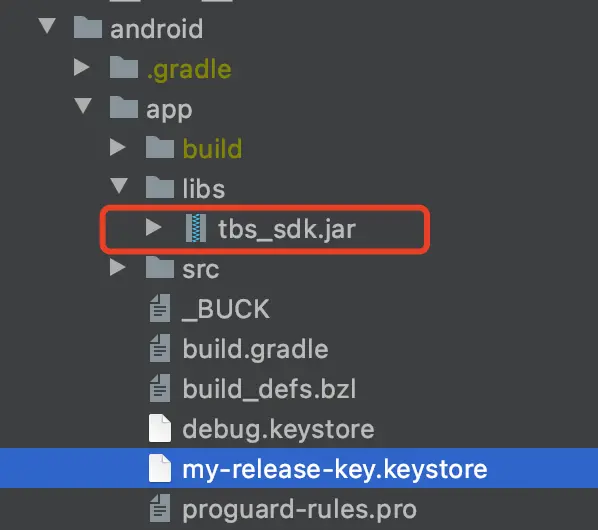

在android/app下創建libs然後把下載的sdk包放到文件夾裏（把很長名字減短）

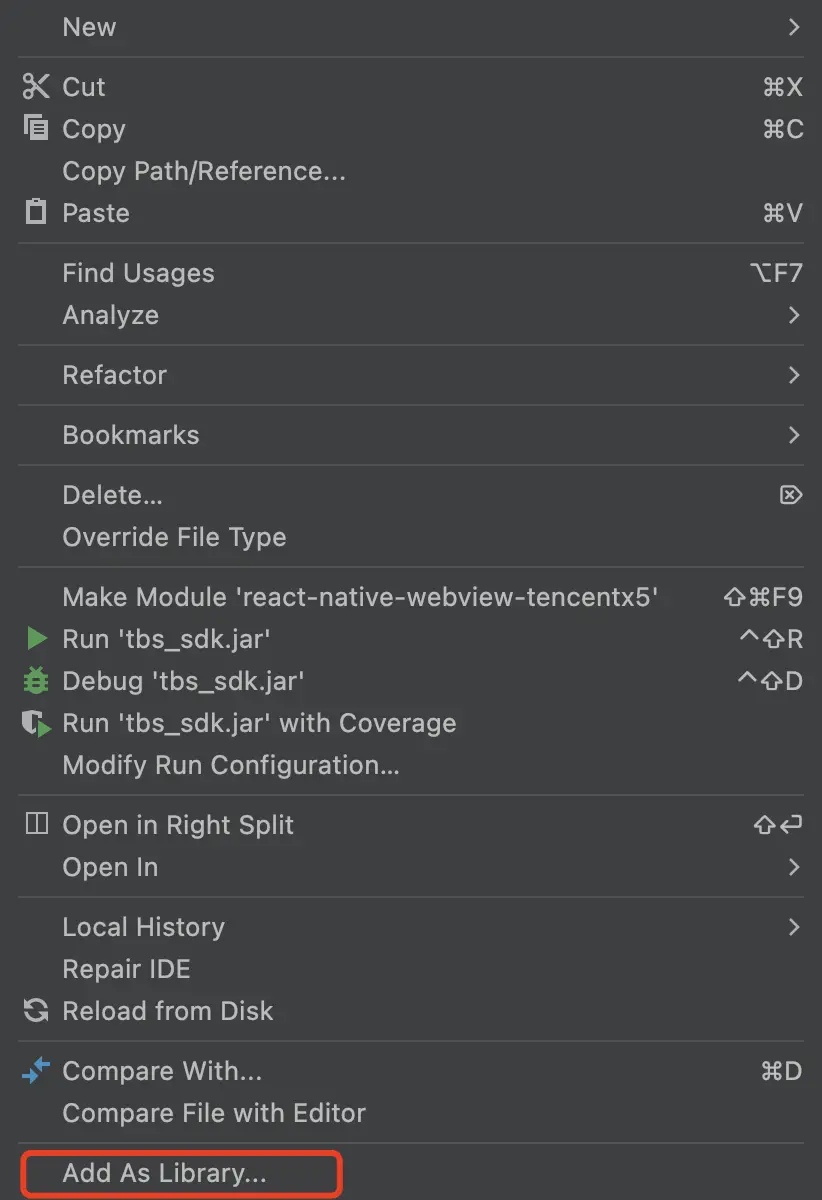

用android studio打開，右鍵點擊sdk包，Add As Library

引入包
在android/app/build.gradle

def webkit_version = rootProject.ext.has('webkitVersion') ? rootProject.ext.get('webkitVersion') : project.properties['ReactNativeWebView_webkitVersion'] <=add
...
dependencies {
 ...
 implementation "androidx.webkit:webkit:$webkit_version" <=add
 implementation files('libs/tbs_sdk.jar') <=add
}
...

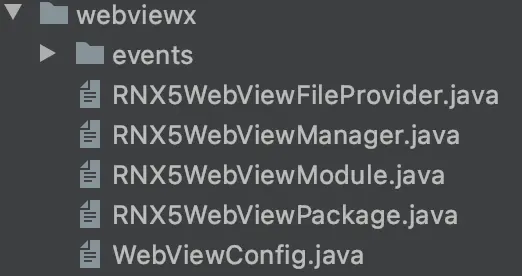

下載react-native-webview-tencentx5的代碼，把android/src/main/java/indi/fan/webviewx5文件夾整個拷貝到自己寫安卓原生組建的文件夾下（我的文件夾名字是webviewx）

RNX5WebViewManager.java裏修改java文件引入的路徑改成自己文件所在的路徑

import indi.fan.webviewx5.RNX5WebViewModule.ShouldOverrideUrlLoadingLock.ShouldOverrideCallbackState;
import indi.fan.webviewx5.events.TopLoadingErrorEvent;
import indi.fan.webviewx5.events.TopHttpErrorEvent;
import indi.fan.webviewx5.events.TopLoadingFinishEvent;
import indi.fan.webviewx5.events.TopLoadingProgressEvent;
import indi.fan.webviewx5.events.TopLoadingStartEvent;
import indi.fan.webviewx5.events.TopMessageEvent;
import indi.fan.webviewx5.events.TopShouldStartLoadWithRequestEvent;
import indi.fan.webviewx5.events.TopRenderProcessGoneEvent;

將RNX5WebViewPackage.kt文件改成RNX5WebViewPackage.java

package com.xxxx.webviewx;

import com.facebook.react.ReactPackage;
import com.facebook.react.bridge.JavaScriptModule;
import com.facebook.react.bridge.NativeModule;
import com.facebook.react.bridge.ReactApplicationContext;
import com.facebook.react.uimanager.ViewManager;

import java.util.Arrays;
import java.util.Collections;
import java.util.List;

public class RNX5WebViewPackage implements ReactPackage {

 @Override
 public List<NativeModule> createNativeModules(ReactApplicationContext reactContext) {
     return Arrays.<NativeModule>asList(
             new RNX5WebViewModule(reactContext)
     );
 }

 public List<Class<? extends JavaScriptModule>> createJSModules() {
     return Collections.emptyList();
 }

 @Override
 public List<ViewManager> createViewManagers(ReactApplicationContext reactContext) {
     return Arrays.asList(
             new RNX5WebViewManager()
     );
 }
}

修改events文件裏的kt文件為java（以TopHttpErrorEvent為例）

package com.xxxx.webviewx.events;

import com.facebook.react.bridge.WritableMap;
import com.facebook.react.uimanager.events.Event;
import com.facebook.react.uimanager.events.RCTEventEmitter;

public class TopHttpErrorEvent extends Event<TopHttpErrorEvent> {
 public static final String EVENT_NAME = "topHttpError";
 public int viewId;
 public WritableMap mEventData;

 public TopHttpErrorEvent(int viewId, WritableMap mEventData) {
     super(viewId);
     this.viewId = viewId;
     this.mEventData = mEventData;
 }

 public String getEventName() {
     return EVENT_NAME;
 }

 public boolean canCoalesce() {
     return false;
 }

 public short getCoalescingKey() {
     return 0;
 }

 public void dispatch(RCTEventEmitter rctEventEmitter) {
     rctEventEmitter.receiveEvent(this.viewId, this.EVENT_NAME, mEventData);
 }
}

引入到MainApplication.java裏

...
import com.xxxx.webviewx.RNX5WebViewPackage;
...

public class MainApplication extends Application implements ReactApplication {
     ...
     @Override
     protected List<ReactPackage> getPackages() {
         @SuppressWarnings("UnnecessaryLocalVariable")
         List<ReactPackage> packages = new PackageList(this).getPackages();
         ...
         packages.add(new RNX5WebViewPackage());
         return packages;
     }
     ...
}

在MainApplication.java初始化x5

...
import com.tencent.smtt.sdk.QbSdk;
import com.tencent.smtt.export.external.TbsCoreSettings;
...

public class MainApplication extends Application implements ReactApplication {
     ...
     @Override
     public void onCreate() {
         super.onCreate();
         initX5();
         ...
     }
     ...
     private void initX5() {
         //解決首次使用時加載卡頓
         HashMap map = new HashMap();
         map.put(TbsCoreSettings.TBS_SETTINGS_USE_SPEEDY_CLASSLOADER, true);
         map.put(TbsCoreSettings.TBS_SETTINGS_USE_DEXLOADER_SERVICE, true);
         QbSdk.initTbsSettings(map);
         //流量也能下載
         QbSdk.setDownloadWithoutWifi(true);
         //x5內核初始化接口
         QbSdk.initX5Environment(getApplicationContext(), new QbSdk.PreInitCallback() {
             @Override
             public void onViewInitFinished(boolean isX5) {
                 //x5內核初始化完成的回調，為true表示x5內核加載成功，否則表示x5內核加載失敗，會自動切換到系統內核。
             }

             @Override
             public void onCoreInitFinished() {
                // 內核初始化完成，可能為x5內核，也可能為系統內核
             }
         });
     }
     ...
}

AndroidManifest.xml里加入權限聲明

<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />

<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />

<uses-permission android:name="android.permission.INTERNET" />

<uses-permission android:name="android.permission.READ_PHONE_STATE" />

AndroidManifest.xml增加Service聲明

<service
  android:name="com.tencent.smtt.export.external.DexClassLoaderProviderService"
  android:label="dexopt"
  android:process=":dexopt" >
</service>

修改proguard-rules

-dontwarn dalvik.**
-dontwarn com.tencent.smtt.**

-keep class com.tencent.smtt.** {
 *;
}

-keep class com.tencent.tbs.** {
 *;
}

打包上架的時候審核會遇到要求x5初始化在確認隱私協議之後，我嗎幾把初始化的方法寫在RNX5WebViewModule.java裏在確認隱私協議之後調用

package com.xxx.webviewx;

import java.util.HashMap;
import com.facebook.react.bridge.ReactApplicationContext;
import com.facebook.react.bridge.ActivityEventListener;
import com.facebook.react.bridge.ReactContextBaseJavaModule;
import com.tencent.smtt.export.external.TbsCoreSettings;
import com.tencent.smtt.sdk.QbSdk;
// import com.facebook.react.bridge.Callback;

@ReactModule(name = RNX5WebViewModule.MODULE_NAME)
public class RNX5WebViewModule extends ReactContextBaseJavaModule implements ActivityEventListener {
 ...
 // 加這個
 private ReactApplicationContext context;
 ...
 public RNX5WebViewModule(ReactApplicationContext reactContext) {
     super(reactContext);
     // 加這個
     this.context = reactContext;
     reactContext.addActivityEventListener(this);
 }
 ...

 // 也可以傳入回調 final Callback callback 把初始化的結果返回出來，沒必要，不成功自己會變成react-native-webview
 @ReactMethod
 public void initX5() {
     HashMap map = new HashMap();
     map.put(TbsCoreSettings.TBS_SETTINGS_USE_SPEEDY_CLASSLOADER, true);
     map.put(TbsCoreSettings.TBS_SETTINGS_USE_DEXLOADER_SERVICE, true);
     QbSdk.initTbsSettings(map);
     QbSdk.setDownloadWithoutWifi(true);
     //x5內核初始化接口
     QbSdk.initX5Environment(context, new QbSdk.PreInitCallback() {
         @Override
         public void onViewInitFinished(boolean isX5) {
             //x5內核初始化完成的回調，為true表示x5內核加載成功，否則表示x5內核加載失敗，會自動切換到系統內核。
         }
         @Override
         public void onCoreInitFinished() {
             // 內核初始化完成，可能為x5內核，也可能為系統內核
         }
     });
 }
 ...
}

初始化ts部分

import React from "react";
import { Platform } from 'react-native';


const NativeRNX5WebView = Platform.OS === "ios" ? {} : (NativeModules.RNX5WebView || {});

// 在同意隱私協議之後 initX5()
export function initX5 () {
 if (NativeRNX5WebView.initX5) {
     NativeRNX5WebView.initX5();
 }
}

WebviewX5的組件封裝參考react-native-webview-tencentx5

import { requireNativeComponent } from 'react-native';
import WebView from "react-native-webview";

const RNX5WebView = Platform.OS === "ios" ? WebView : requireNativeComponent('RNX5WebView');

...

接入TBS SDK 並不代表一定可以使用內核。內核由於包大小較大，需要依賴動態下發，故存在一定失敗率
