Triton 是一種用於並行編程的語言和編譯器。它旨在提供一個基於 Python 的編程環境，以高效編寫自定義 DNN 計算內核，並能夠在現代 GPU 硬件上以最大吞吐量運行。
更多 Triton 中文文檔可訪問 →https://triton.hyper.ai/
在本教程中，你將編寫一個比 PyTorch 實現運行更快的高性能層標準化 (layer normalization) 內核。
在此過程中，你將瞭解：
- 在 Triton 中實現反向傳播 (backward pass)。
- 在 Triton 中實現並行歸約 (parallel reduction)。
動機
層標準化 (LayerNorm) 算子最先在 BA2016 中提出，旨在提高序列模型（例如 Transformers）或小 batchsize 神經網絡的性能。它以向量 x 作為輸入，並生成與輸入 shape 相同的向量 y 作為輸出。 標準化是通過減去均值併除以 x 的標準差來實現的。 標準化後，會應用帶有權重 w 和偏置 b 的可學習線性變換。
首先讓我們看看前向傳播的實現。
import torch
import triton
import triton.language as tl
try:
# This is https://github.com/NVIDIA/apex, NOT the apex on PyPi, so it
# should not be added to extras_require in setup.py.
# 這是 https://github.com/NVIDIA/apex，不是 PyPi 的 apex，
# 所以不應該加進 setup.py 的額外依賴中
import apex
HAS_APEX = True
except ModuleNotFoundError:
HAS_APEX = False
@triton.jit
def _layer_norm_fwd_fused(
X, # pointer to the input 輸入指針
Y, # pointer to the output 輸出指針
W, # pointer to the weights 權重指針
B, # pointer to the biases 偏差指針
Mean, # pointer to the mean 均值指針
Rstd, # pointer to the 1/std 1/std 指針
stride, # how much to increase the pointer when moving by 1 row 指針移動一行應該增加多少
N, # number of columns in X X 的列數
eps, # epsilon to avoid division by zero 用於避免除以 0 的 epsilon
BLOCK_SIZE: tl.constexpr,
):
# Map the program id to the row of X and Y it should compute.
# 映射程序 id 到對應計算的 X 和 Y 的行
row = tl.program_id(0)
Y += row * stride
X += row * stride
# Compute mean
# 計算均值
mean = 0
_mean = tl.zeros([BLOCK_SIZE], dtype=tl.float32)
for off in range(0, N, BLOCK_SIZE):
cols = off + tl.arange(0, BLOCK_SIZE)
a = tl.load(X + cols, mask=cols < N, other=0.).to(tl.float32)
_mean += a
mean = tl.sum(_mean, axis=0) / N
# Compute variance
# 計算方差
_var = tl.zeros([BLOCK_SIZE], dtype=tl.float32)
for off in range(0, N, BLOCK_SIZE):
cols = off + tl.arange(0, BLOCK_SIZE)
x = tl.load(X + cols, mask=cols < N, other=0.).to(tl.float32)
x = tl.where(cols < N, x - mean, 0.)
_var += x * x
var = tl.sum(_var, axis=0) / N
rstd = 1 / tl.sqrt(var + eps)
# Write mean / rstd
# 寫入 mean / rstd
tl.store(Mean + row, mean)
tl.store(Rstd + row, rstd)
# Normalize and apply linear transformation
# 歸一化並應用線性變換
for off in range(0, N, BLOCK_SIZE):
cols = off + tl.arange(0, BLOCK_SIZE)
mask = cols < N
w = tl.load(W + cols, mask=mask)
b = tl.load(B + cols, mask=mask)
x = tl.load(X + cols, mask=mask, other=0.).to(tl.float32)
x_hat = (x - mean) * rstd
y = x_hat * w + b
# Write output
tl.store(Y + cols, y, mask=mask)
反向傳播
層標準化算子的反向傳播比前向傳播要複雜一些。
由於在同一批次中的所有行使用相同的權重 w 和偏差 b，它們的梯度需要累加。為了高效地執行此步驟，我們使用並行歸約策略：每個內核實例將某些行的部分 ∇w 和 ∇b 累積到 GROUP_SIZE_M 個獨立緩衝區之一中。這些緩衝區保存在 L2 緩存中，然後通過另一個函數進一步歸約以計算實際的∇w 和 ∇b。

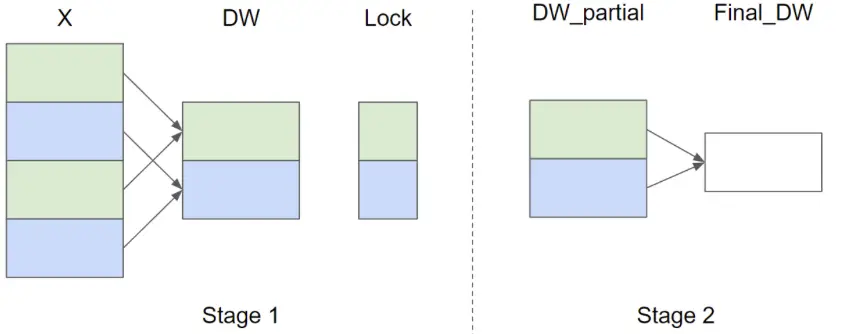

設輸入行數 M=4 和 GROUP_SIZE_M=2，以下是 ∇w 的並行歸約策略圖示（為簡潔起見，省略 ∇b）：
在第一階段，同色的 X 行共享同一個緩衝區，因此使用 lock 以確保一次只有一個內核實例寫入緩衝區。在第二階段，這些緩衝區會進一步歸約以計算最終的 ∇w 和 ∇b。在以下實現中，第一階段由函數 _layer_norm_bwd_dx_fused 實現，第二階段由函數 _layer_norm_bwd_dwdb 實現。
@triton.jit
def _layer_norm_bwd_dx_fused(DX, # pointer to the input gradient 輸入梯度指針
DY, # pointer to the output gradient 輸出梯度指針
DW, # pointer to the partial sum of weights gradient 權重和梯度指針
DB, # pointer to the partial sum of biases gradient 偏差梯度部分和指針
X, # pointer to the input 輸入指針
W, # pointer to the weights 權重指針
Mean, # pointer to the mean 均值指針
Rstd, # pointer to the 1/std 1/std 指針
Lock, # pointer to the lock 鎖指針
stride, # how much to increase the pointer when moving by 1 row 指針移動一行應該增加多少
N, # number of columns in X X 的列數
GROUP_SIZE_M: tl.constexpr, BLOCK_SIZE_N: tl.constexpr):
# Map the program id to the elements of X, DX, and DY it should compute.
# 映射程序 id 到對應計算的 X, DX, DY
row = tl.program_id(0)
cols = tl.arange(0, BLOCK_SIZE_N)
mask = cols < N
X += row * stride
DY += row * stride
DX += row * stride
# Offset locks and weights/biases gradient pointer for parallel reduction
# 偏移鎖和權重/偏差梯度指針以並行歸約
lock_id = row % GROUP_SIZE_M
Lock += lock_id
Count = Lock + GROUP_SIZE_M
DW = DW + lock_id * N + cols
DB = DB + lock_id * N + cols
# Load data to SRAM
# 讀取數據到 SRAM
x = tl.load(X + cols, mask=mask, other=0).to(tl.float32)
dy = tl.load(DY + cols, mask=mask, other=0).to(tl.float32)
w = tl.load(W + cols, mask=mask).to(tl.float32)
mean = tl.load(Mean + row)
rstd = tl.load(Rstd + row)
# Compute dx
# 計算 ds
xhat = (x - mean) * rstd
wdy = w * dy
xhat = tl.where(mask, xhat, 0.)
wdy = tl.where(mask, wdy, 0.)
c1 = tl.sum(xhat * wdy, axis=0) / N
c2 = tl.sum(wdy, axis=0) / N
dx = (wdy - (xhat * c1 + c2)) * rstd
# Write dx
# 寫入 dx
tl.store(DX + cols, dx, mask=mask)
# Accumulate partial sums for dw/db
# 累加 dw 和 db 的部分和
partial_dw = (dy * xhat).to(w.dtype)
partial_db = (dy).to(w.dtype)
while tl.atomic_cas(Lock, 0, 1) == 1:
pass
count = tl.load(Count)
# First store doesn't accumulate
# 第一個儲存不累加
if count == 0:
tl.atomic_xchg(Count, 1)
else:
partial_dw += tl.load(DW, mask=mask)
partial_db += tl.load(DB, mask=mask)
tl.store(DW, partial_dw, mask=mask)
tl.store(DB, partial_db, mask=mask)
# Release the lock
# 釋放鎖
tl.atomic_xchg(Lock, 0)
@triton.jit
def _layer_norm_bwd_dwdb(DW, # pointer to the partial sum of weights gradient 權重部分和指針
DB, # pointer to the partial sum of biases gradient 偏差梯度部分和指針
FINAL_DW, # pointer to the weights gradient 權重梯度指針
FINAL_DB, # pointer to the biases gradient 偏差梯度指針
M, # GROUP_SIZE_M
N, # number of columns 列數
BLOCK_SIZE_M: tl.constexpr, BLOCK_SIZE_N: tl.constexpr):
# Map the program id to the elements of DW and DB it should compute.
# 映射程序 id 到對應計算的 DW 和 DB
pid = tl.program_id(0)
cols = pid * BLOCK_SIZE_N + tl.arange(0, BLOCK_SIZE_N)
dw = tl.zeros((BLOCK_SIZE_M, BLOCK_SIZE_N), dtype=tl.float32)
db = tl.zeros((BLOCK_SIZE_M, BLOCK_SIZE_N), dtype=tl.float32)
# Iterate through the rows of DW and DB to sum the partial sums.
#迭代通過 DW 和 DB 的行，對部分和進行求和。
for i in range(0, M, BLOCK_SIZE_M):
rows = i + tl.arange(0, BLOCK_SIZE_M)
mask = (rows[:, None] < M) & (cols[None, :] < N)
offs = rows[:, None] * N + cols[None, :]
dw += tl.load(DW + offs, mask=mask, other=0.)
db += tl.load(DB + offs, mask=mask, other=0.)
# Write the final sum to the output.
# 將最終結果寫入輸出
sum_dw = tl.sum(dw, axis=0)
sum_db = tl.sum(db, axis=0)
tl.store(FINAL_DW + cols, sum_dw, mask=cols < N)
tl.store(FINAL_DB + cols, sum_db, mask=cols < N)基準測試
現在我們可以比較 Triton 內核與 PyTorch 的性能了。這裏以每個特徵少於 64KB 的輸入為例進行講解。具體來説，可以設置 mode: 'backward' 來進行後向傳播的基準測試。
class LayerNorm(torch.autograd.Function):
@staticmethod
def forward(ctx, x, normalized_shape, weight, bias, eps):
# allocate output
# 分配輸出
y = torch.empty_like(x)
# reshape input data into 2D tensor
# 將輸入數據的形狀改為 2D 張量
x_arg = x.reshape(-1, x.shape[-1])
M, N = x_arg.shape
mean = torch.empty((M, ), dtype=torch.float32, device=x.device)
rstd = torch.empty((M, ), dtype=torch.float32, device=x.device)
# Less than 64KB per feature: enqueue fused kernel
# 少於 64KB 每個特徵：入隊融合內核
MAX_FUSED_SIZE = 65536 // x.element_size()
BLOCK_SIZE = min(MAX_FUSED_SIZE, triton.next_power_of_2(N))
if N > BLOCK_SIZE:
raise RuntimeError("This layer norm doesn't support feature dim >= 64KB.")
# heuristics for number of warps
# 對 warp 數量的啓發算法
num_warps = min(max(BLOCK_SIZE // 256, 1), 8)
# enqueue kernel
# 入隊內核
_layer_norm_fwd_fused[(M, )]( #
x_arg, y, weight, bias, mean, rstd, #
x_arg.stride(0), N, eps, #
BLOCK_SIZE=BLOCK_SIZE, num_warps=num_warps, num_ctas=1)
ctx.save_for_backward(x, weight, bias, mean, rstd)
ctx.BLOCK_SIZE = BLOCK_SIZE
ctx.num_warps = num_warps
ctx.eps = eps
return y
@staticmethod
def backward(ctx, dy):
x, w, b, m, v = ctx.saved_tensors
# heuristics for amount of parallel reduction stream for DW/DB
# 計算對 DW/DB 並行規約流數量的啓發算法
N = w.shape[0]
GROUP_SIZE_M = 64
if N <= 8192: GROUP_SIZE_M = 96
if N <= 4096: GROUP_SIZE_M = 128
if N <= 1024: GROUP_SIZE_M = 256
# allocate output
# 分配輸出
locks = torch.zeros(2 * GROUP_SIZE_M, dtype=torch.int32, device=w.device)
_dw = torch.zeros((GROUP_SIZE_M, N), dtype=x.dtype, device=w.device)
_db = torch.zeros((GROUP_SIZE_M, N), dtype=x.dtype, device=w.device)
dw = torch.empty((N, ), dtype=w.dtype, device=w.device)
db = torch.empty((N, ), dtype=w.dtype, device=w.device)
dx = torch.empty_like(dy)
# enqueue kernel using forward pass heuristics
# 使用前向傳播啓發算法入隊內核
# also compute partial sums for DW and DB
# 同樣用於計算 DW 和 DB 的部分和
x_arg = x.reshape(-1, x.shape[-1])
M, N = x_arg.shape
_layer_norm_bwd_dx_fused[(M, )]( #
dx, dy, _dw, _db, x, w, m, v, locks, #
x_arg.stride(0), N, #
BLOCK_SIZE_N=ctx.BLOCK_SIZE, #
GROUP_SIZE_M=GROUP_SIZE_M, #
num_warps=ctx.num_warps)
grid = lambda meta: [triton.cdiv(N, meta['BLOCK_SIZE_N'])]
# accumulate partial sums in separate kernel
# 在單獨的內核中累加部分和
_layer_norm_bwd_dwdb[grid](
_dw, _db, dw, db, min(GROUP_SIZE_M, M), N, #
BLOCK_SIZE_M=32, #
BLOCK_SIZE_N=128, num_ctas=1)
return dx, None, dw, db, None
layer_norm = LayerNorm.apply
def test_layer_norm(M, N, dtype, eps=1e-5, device='cuda'):
# create data
# 創建數據
x_shape = (M, N)
w_shape = (x_shape[-1], )
weight = torch.rand(w_shape, dtype=dtype, device=device, requires_grad=True)
bias = torch.rand(w_shape, dtype=dtype, device=device, requires_grad=True)
x = -2.3 + 0.5 * torch.randn(x_shape, dtype=dtype, device=device)
dy = .1 * torch.randn_like(x)
x.requires_grad_(True)
# forward pass
# 前向傳播
y_tri = layer_norm(x, w_shape, weight, bias, eps)
y_ref = torch.nn.functional.layer_norm(x, w_shape, weight, bias, eps).to(dtype)
# backward pass (triton)
# 反向傳播 (triton)
y_tri.backward(dy, retain_graph=True)
dx_tri, dw_tri, db_tri = [_.grad.clone() for _ in [x, weight, bias]]
x.grad, weight.grad, bias.grad = None, None, None
# backward pass (torch)
# 反向傳播 (torch)
y_ref.backward(dy, retain_graph=True)
dx_ref, dw_ref, db_ref = [_.grad.clone() for _ in [x, weight, bias]]
# 比較
assert torch.allclose(y_tri, y_ref, atol=1e-2, rtol=0)
assert torch.allclose(dx_tri, dx_ref, atol=1e-2, rtol=0)
assert torch.allclose(db_tri, db_ref, atol=1e-2, rtol=0)
assert torch.allclose(dw_tri, dw_ref, atol=1e-2, rtol=0)

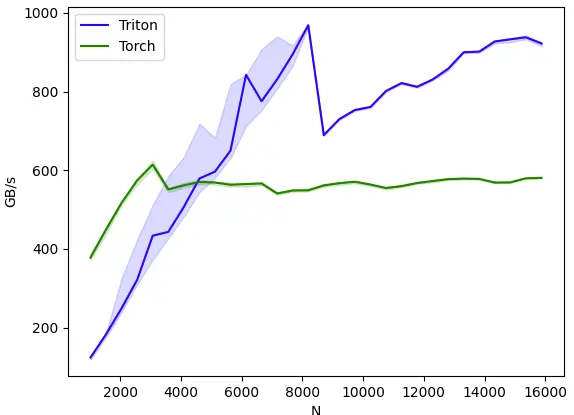

@triton.testing.perf_report(
triton.testing.Benchmark(
x_names=['N'],
x_vals=[512 * i for i in range(2, 32)],
line_arg='provider',
line_vals=['triton', 'torch'] + (['apex'] if HAS_APEX else []),
line_names=['Triton', 'Torch'] + (['Apex'] if HAS_APEX else []),
styles=[('blue', '-'), ('green', '-'), ('orange', '-')],
ylabel='GB/s',
plot_name='layer-norm-backward',
args={'M': 4096, 'dtype': torch.float16, 'mode': 'backward'},
))
def bench_layer_norm(M, N, dtype, provider, mode='backward', eps=1e-5, device='cuda'):
# create data
# 創建數據
x_shape = (M, N)
w_shape = (x_shape[-1], )
weight = torch.rand(w_shape, dtype=dtype, device=device, requires_grad=True)
bias = torch.rand(w_shape, dtype=dtype, device=device, requires_grad=True)
x = -2.3 + 0.5 * torch.randn(x_shape, dtype=dtype, device=device)
dy = .1 * torch.randn_like(x)
x.requires_grad_(True)
quantiles = [0.5, 0.2, 0.8]
def y_fwd():
if provider == "triton":
return layer_norm(x, w_shape, weight, bias, eps) # noqa: F811, E704
if provider == "torch":
return torch.nn.functional.layer_norm(x, w_shape, weight, bias, eps) # noqa: F811, E704
if provider == "apex":
apex_layer_norm = (apex.normalization.FusedLayerNorm(w_shape).to(x.device).to(x.dtype))
return apex_layer_norm(x) # noqa: F811, E704
# forward pass
# 前向傳播
if mode == 'forward':
gbps = lambda ms: 2 * x.numel() * x.element_size() / ms * 1e-6
ms, min_ms, max_ms = triton.testing.do_bench(y_fwd, quantiles=quantiles, rep=500)
# backward pass
# 反向傳播
if mode == 'backward':
y = y_fwd()
gbps = lambda ms: 3 * x.numel() * x.element_size() / ms * 1e-6 # noqa: F811, E704
ms, min_ms, max_ms = triton.testing.do_bench(lambda: y.backward(dy, retain_graph=True), quantiles=quantiles,
grad_to_none=[x], rep=500)
return gbps(ms), gbps(max_ms), gbps(min_ms)
test_layer_norm(1151, 8192, torch.float16)
bench_layer_norm.run(save_path='.', print_data=True)

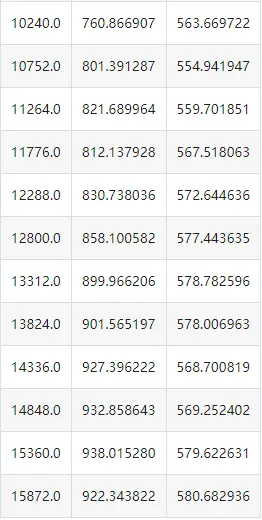

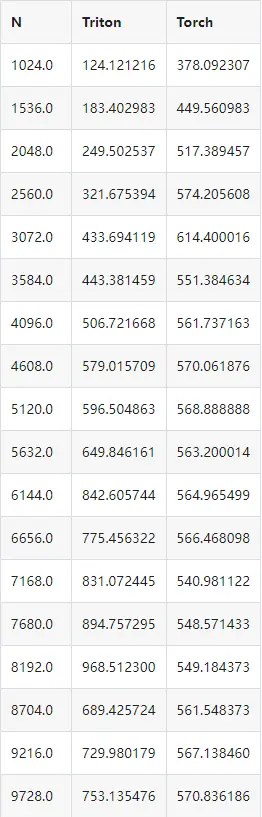

Out:
layer-norm-backward:
參考文獻
[BA2016] Jimmy Lei Ba and Jamie Ryan Kiros and Geoffrey E. Hinton, “Layer Normalization”, Arxiv 2016
Download Jupyter notebook: 05-layer-norm.ipynb
Download Python source code: 05-layer-norm.py
Download zipped: 05-layer-norm.zip
